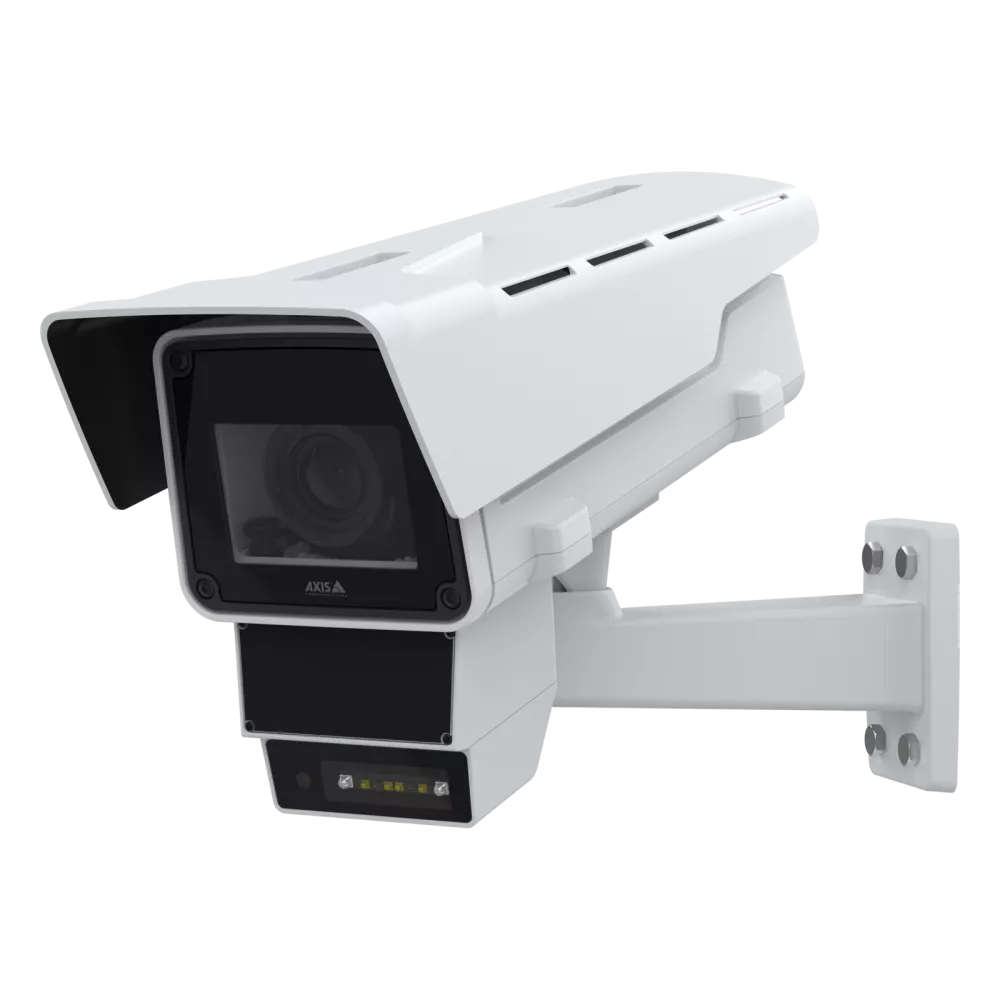

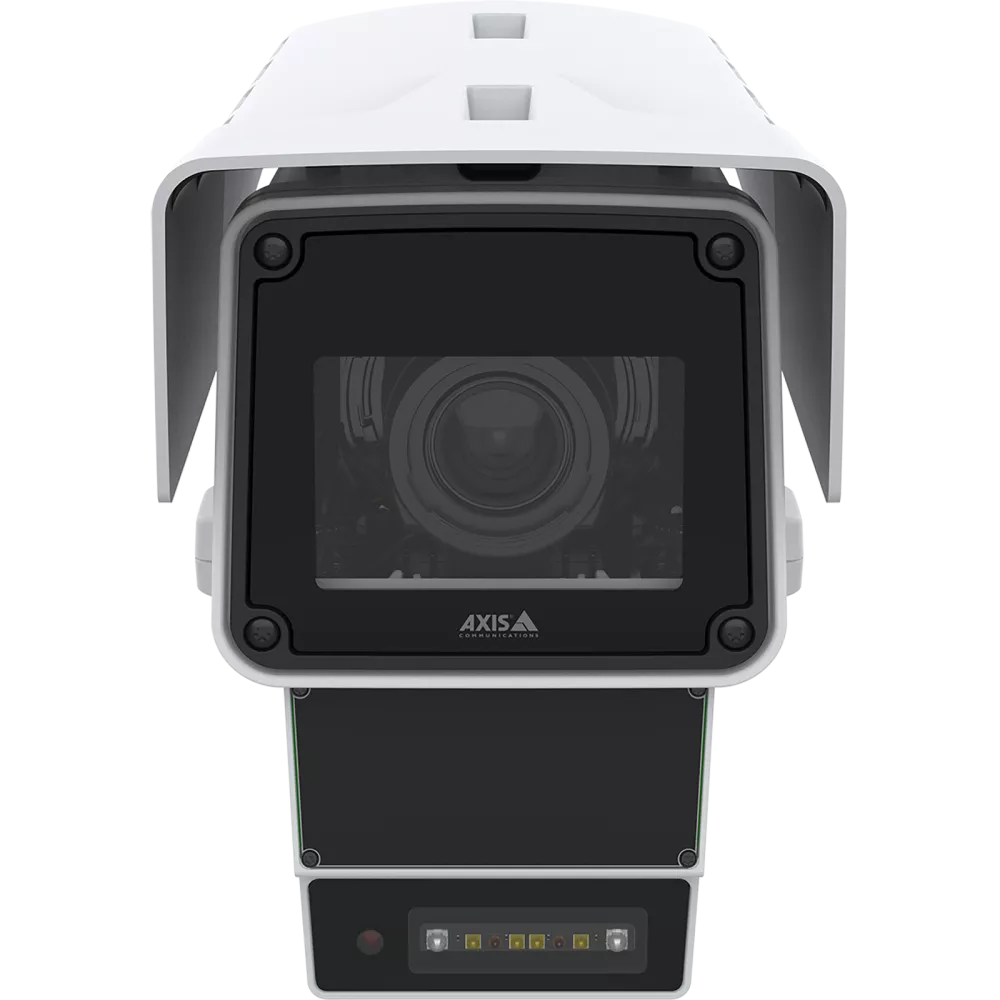

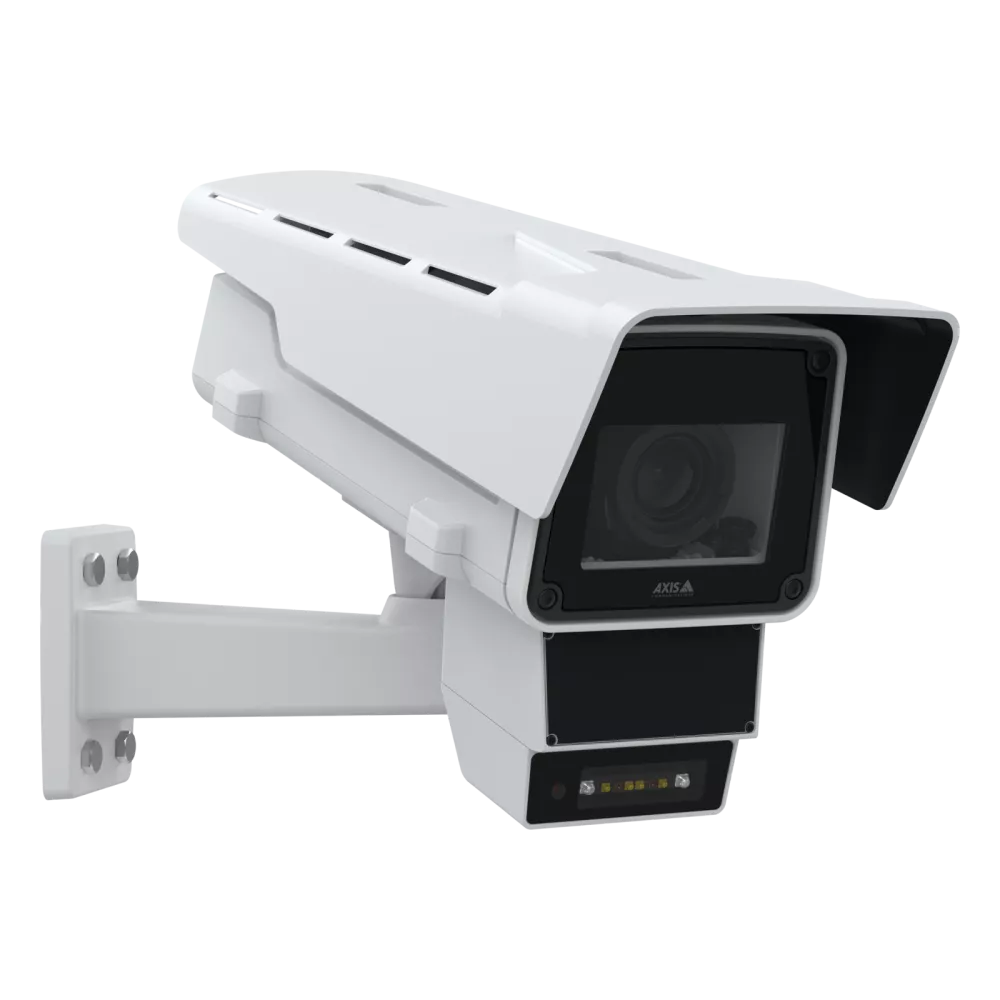

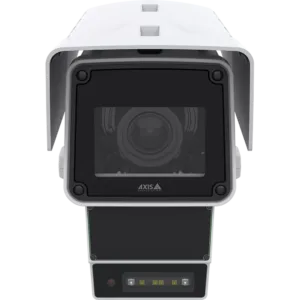

AXIS Q1656-DLE Radar-Video Fusion Camera – 02420-001

AXIS Q1656-DLE Radar-Video Fusion Camera. Enhanced situational awareness based on the fusion of visual- and radar sensor information in one device.
1/1.8” image sensor, outdoor, NEMA 4X, IP66, IP67 and impact-resistant, 4 MP, Day/night radar-video fusion camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm IR and White IR LED technology. Includes an IR corrected varifocal 3.9-10 mm F1.5 i-CS lens with remote zoom and focus. Integrated radar unit, 60.0 GHz-61.5 GHz and 95 degree horizontal field of detection. In addition to radar-video fusion, radar functionality such as built-in analytics including classification of humans and vehicles, is available and enables filtering on distance, customized detection zones, and autotracking for PTZ cameras.
Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics, Video motion detection, Radar motion detection, AXIS Speed Monitor, shock detection and active tampering alarm. Axis Edge Vault with FIPS certified TPM for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio, audio detection with optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3at Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. Built-in heater, Arctic Temperature Control for start-up in -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield, wall bracket, Torx T20 screwdriver and cable glands. Midspan or power supply not included.

Radio approvals, EN 300440, EN 301489-1, EN 301489-51, EN 62311, FCC Part 15 Subpart C.
