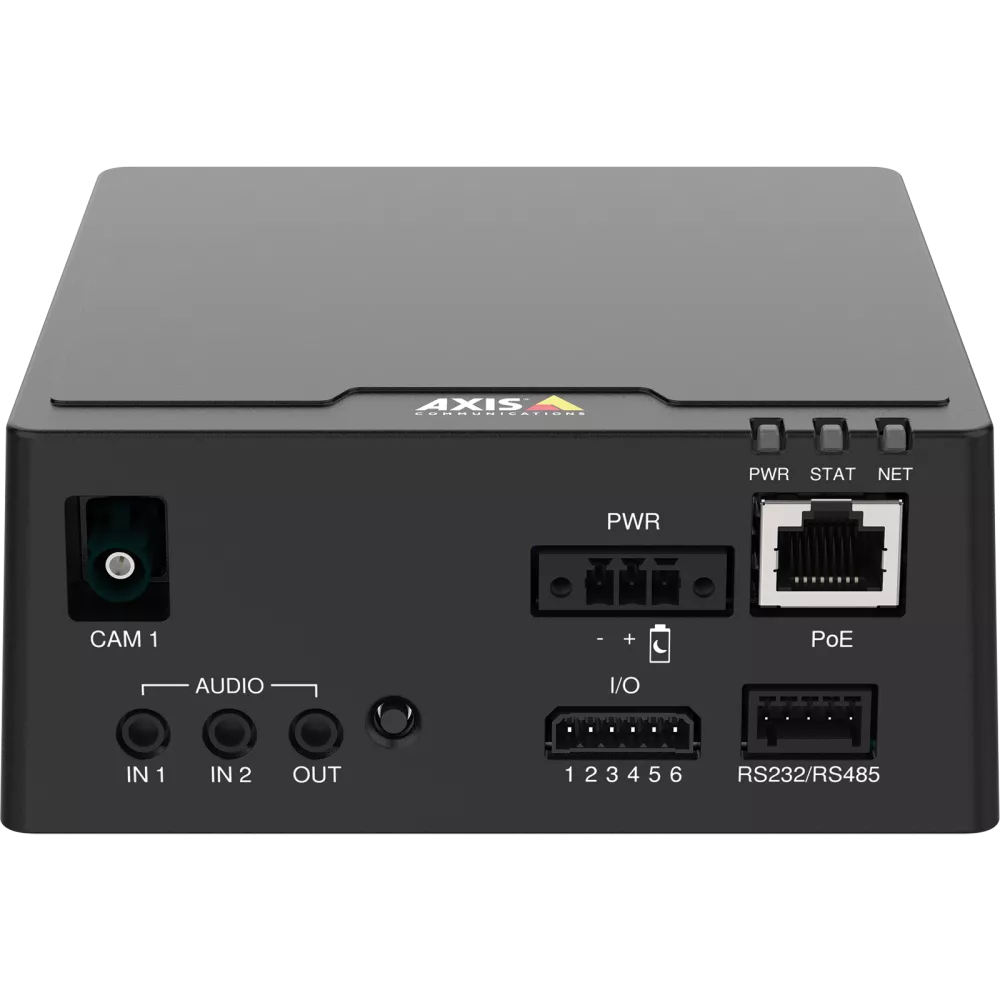

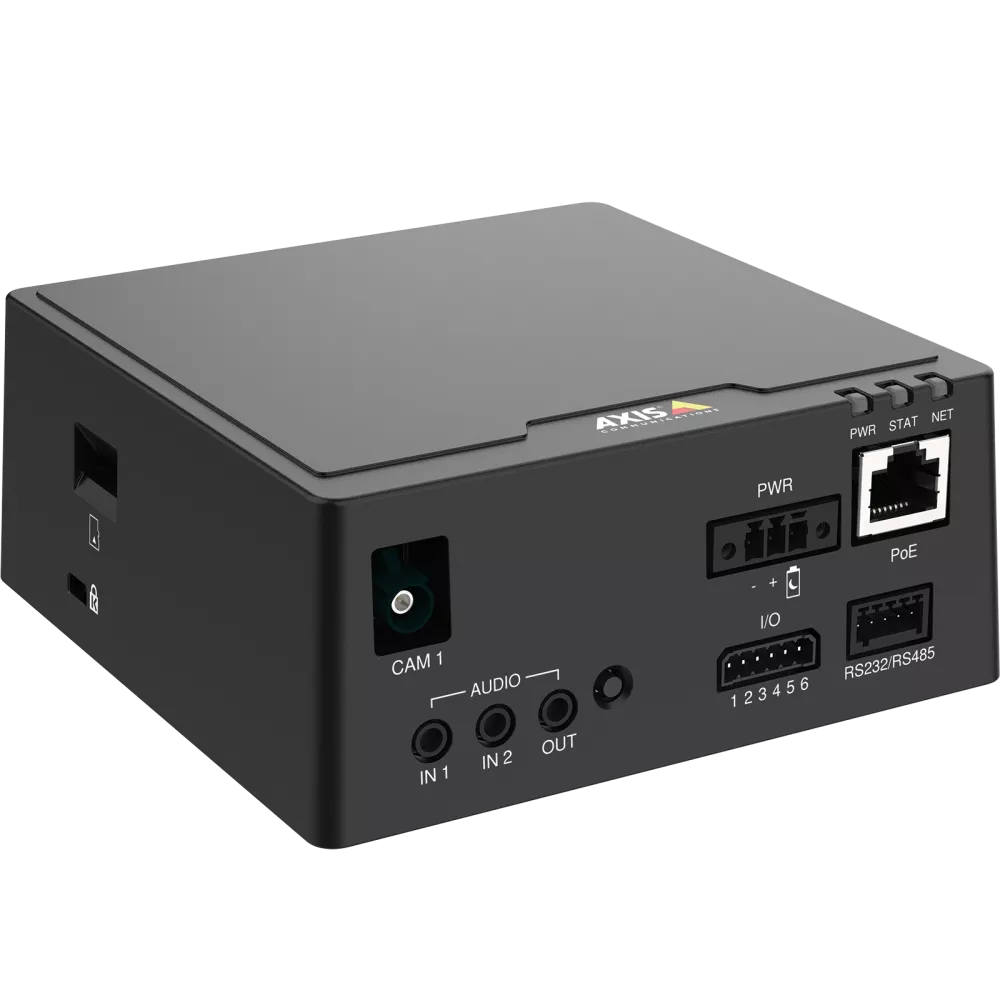

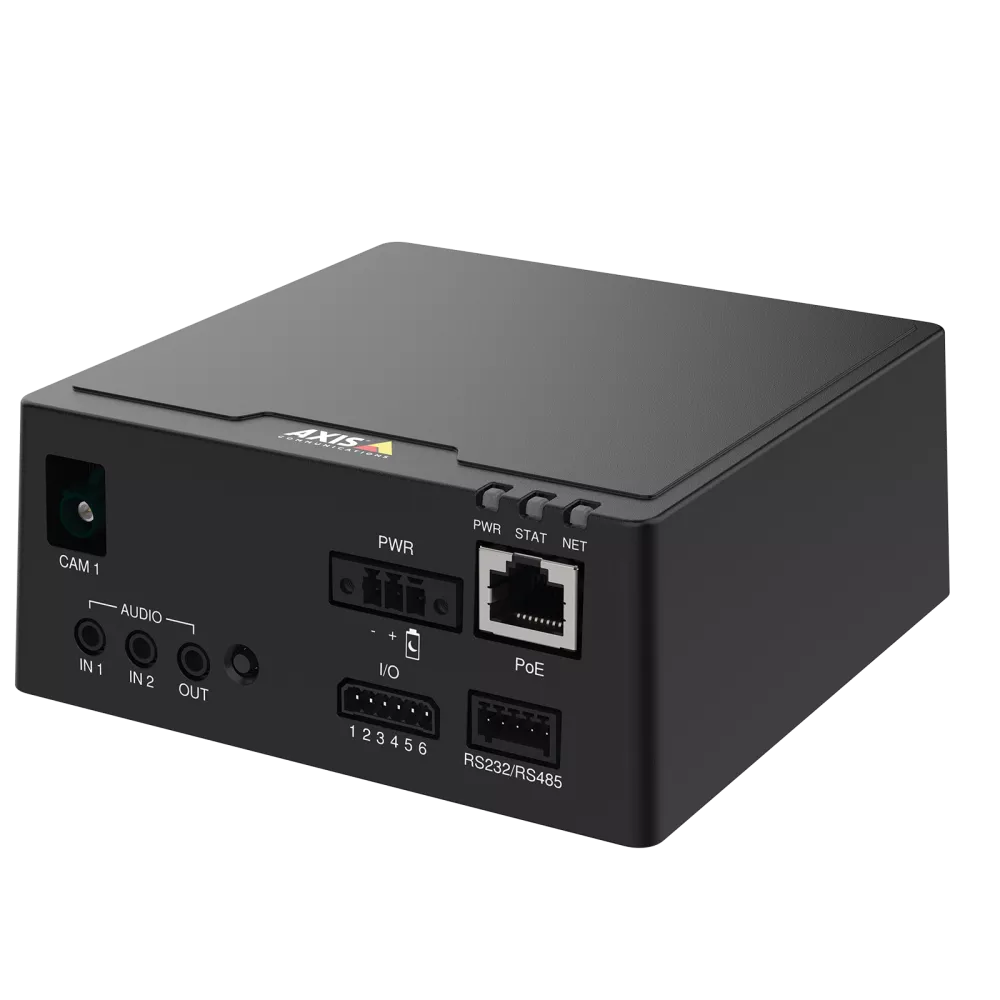

AXIS F9111 MAIN UNIT – 01990-001

AXIS F9111 is a one channel main unit part of the 2nd generation F-series. One F21, F7225-RE or F4105-LRE video sensor can be connected to it. It also has 2 Audio IN, 1 Audio Out, 4x configuration I/O, 1 RS 232/485, 1x 10-48V DC. It has an Ethernet port and PoE Class 4. Max 25,5W.

AXIS TU6009 Connector 6-pin (for the I/O port), AXIS TU6008 Connector 5-pin (for RS port) and AXIS TU6001 Connector 3-in (for DC power) have to be purchased separately.

AXIS F9111 main unit is NOT compatible with the 1st generation of F-series sensors (F1005-E, F1015-E, F1025-E, F1025 F4005, F4005-E)
