LVH-909WR/ASB

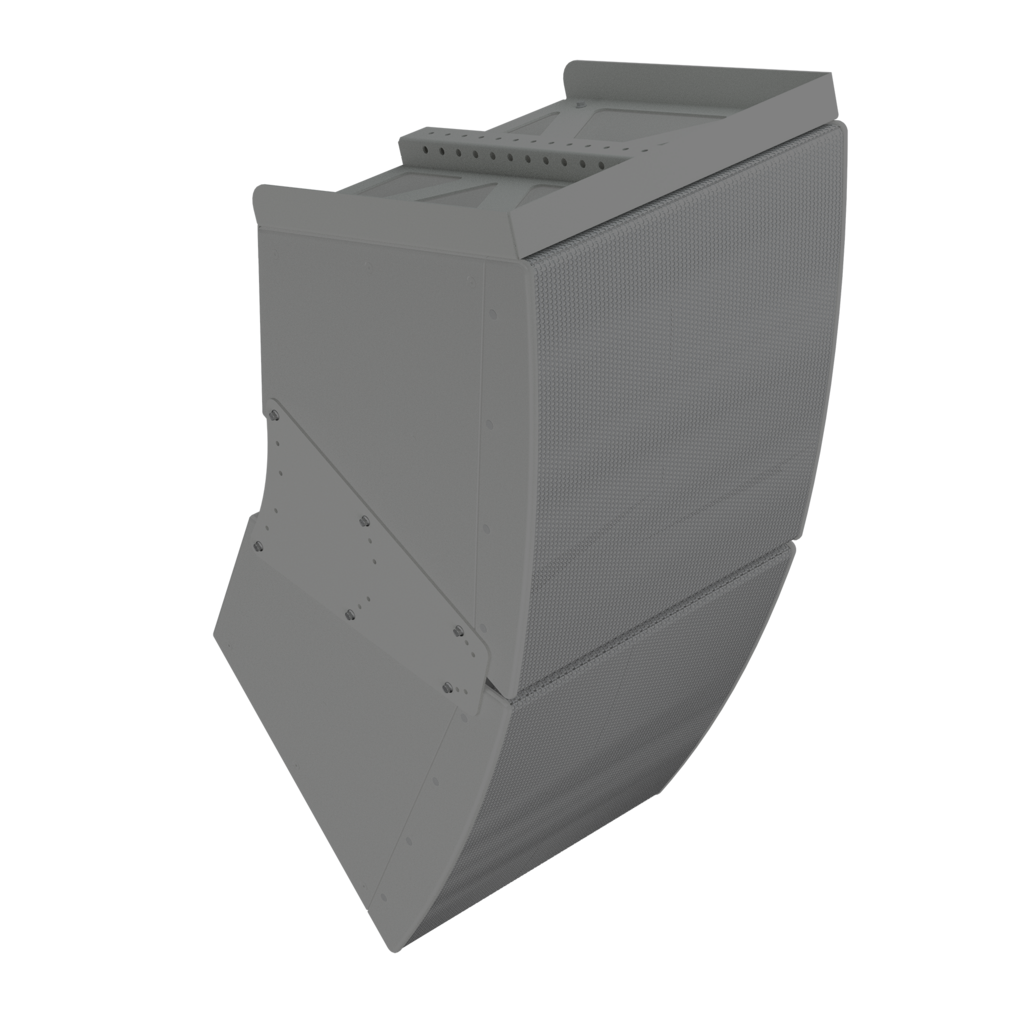

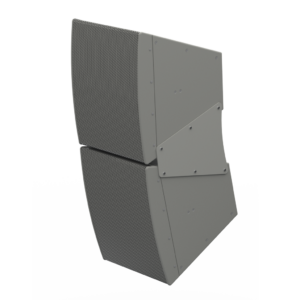

The Community LVH-909/AS Beamforming Venue Horn is a large-scale, high output, arrayable point source loudspeaker that allows designers to tailor the coverage of a single loudspeaker, dual-cabinet array, or an array of multiple loudspeakers to precisely cover any audience area with smooth, even, full-range sound distribution. LVH-909/AS provides the highest output, widest bandwidth, and most consistent coverage of any large format point source loudspeaker on the market. Combined with Amplified Loudspeaker Controllers (ALC), the LVH-909/AS is able to meet the sound requirements for music and speech reinforcement in large houses of worship, stadiums, theaters, and other large venues.

Designed for exceptional performance in large venues, the Active Standard LVH-909/AS features a total of four 12 inch LF drivers, three Community M200 midrange compression drivers, and four 1.5 inch HF compression drivers, with pattern control below 400 Hz and up to 137 dB continuous max SPL. The LVH-909/AS offers 90 degrees of fixed horizontal dispersion, with three presets for vertical dispersion beamforming. Possessing advanced features, highly-focused dispersion patterns, optional weather-resistant models, and most importantly sonic excellence, all LVH-900 loudspeakers make installations not only fast and simple, but as functionally effective as possible.

All measurements are performed using a time-windowed impulse response to eliminate reflections, approximating an anechoic environment, at a distance of at least 6.0 m. All acoustic specifications are rounded to the nearest whole number. An external DSP using settings provided by Biamp is required to achieve the specified performance; further performance gains can be realized using the FIR loudspeaker optimization presets available in Biamp’s Community Amplified Loudspeaker Controllers (ALCs).

All LVH-9xx/AS models comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
