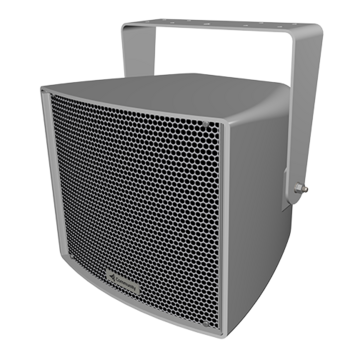

R.35-3896-EN

The R.35-3896-EN is an EN54-24 certified, triaxial 8 inch carbon ring cone loudspeaker featuring Biamp’s exclusive MultiSource Waveguide technology which adeptly integrates the output from dual midrange compression drivers and a 1 inch exit HF compression driver into a single coherent source. Fully passive, it is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.

The R.35-3896-EN meets the need for a high performance compact loudspeaker for fill and supplementary areas in larger venues and for smaller venues wanting to conform to EN54 standards.  With outstanding voice and music quality, the R.35-3896-EN is equally suitable for indoor and outdoor use in a wide variety of applications, including background and foreground music and announcement systems in corporate audiovisual, leisure centers, swimming pools, theaters, night clubs, shopping malls, stadiums, cruise ships, theme parks and factories.

The high output, 3 inch voice coil, 8 inch carbon ring cone LF driver features a flange-less frame design that permits a cone area nearly equivalent to a typical 10 inch driver, resulting in high sensitivity and increased LF extension.  The low LF/MR passive crossover point results in improved midrange pattern control and elimination of horn coloration in the LF response.  With a built-in autoformer, the R.35-3896-EN is certified for use in 100 volt distributed system applications.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
